#badBIOS features explained

Dan Goodin at Ars Technica has reported on Dragos Ruiu's "badBIOS" analysis. I thought I'd explain how some of this stuff works.

First, a disclaimer

The story so far is this: Dragos's laptops appear to be have been infected by a virus more advanced than anything seen so far, more advanced than Stuxnet or Flame, two previous examples of state-sponsored advanced viruses.
We don't know of any of this is real. Dragos could be having a psychotic episode where paranoia has gotten the best of him. Our industry is rife with paranoia, where our "Occam's Razor" is tuned to believing that the most plausible explanation for everything "hackers". Weird sounds coming from the speakers? OMG it's a hacker!!

Also, Dragos hasn't given us anything we can independently verify. If it's a bad BIOS, Dragos can extract it and publish it. If a USB drive infects a system, Dragos can use a USB sniffer and dump all the packets going across the USB bus. If it's ultrasonic audio, Dragos could record the sound in WAV files. He could publish all this stuff, and we could see for ourselves whether it's real or not. That he hasn't casts doubt on what he's found.

But at the same time, this is Dragos Ruiu, a well-respected researcher for 15 years. If he says he's got an infected BIOS, I'm going to believe him. Sure, he's probably gotten some things wrong: just because "they" really are ought to get you doesn't mean that "they" are responsible for every phenomenon you can't explain. But on the whole, I (and many other old-time experts) believe that in the end, most everything he suspects will be confirmed.

Infecting the BIOS ROM

When you turn on a computer it starts running code located in flash memory. This startup code tests the system, initializes the hardware, then loads the operating system.

We call this the "BIOS ROM", but the term as been outdated since the 1980s. The word BIOS (Basic Input/Ouput System) meant that it contained the drivers the operating system could use to interact with the hardware, but today's operating systems contain their own drivers, ignoring the BIOS drivers. The word "ROM" (Read Only Memory) meant that it was burned into chips and couldn't be changed -- except by replacing the chips. Today, it's flash memory that is writeable. So a BIOS ROM isn't a BIOS ROM anymore, but we still call it that.

What hackers can do is overwrite the BIOS flash memory, adding their own code that runs on startup. It's a little bit tricky, because eventually the BIOS hands off control to the operating system and ceases to run. There are a number of techniques a hostile BIOS needs to do in order to maintain control. For example, in the early phase of booting, the operating system uses the BIOS drivers to read from hard drives. Therefore, the BIOS might look at which files are being loaded, and then load hostile versions of some of them. Then, once the operating system switches over to using it's own device drivers, the hostile code is already running inside the operating system.

Dragos has focused just on the BIOS flash memory, but there are other places viral code can hide. Each device in the computer has its own microprocessor, sometimes called a "microcontroller". Each microcontroller has its own flash memory and "firmware", most of which  can themselves be updated. Examples include: trackpad, keyboard, battery, SD card reader, camera, disk drive, bluetooth, wifi, Ethernet, graphics processor, system agent, and CPU. That last bit might surprise you, but an Intel x86 CPU at the heart of your computer itself has an embedded microcontroller, controlling such things as frequency in order to conserve power.

Update: The picture to the right shows my Macintosh's built-in Bluetooth adapter. It's uses the Broadcom BCM20702 chip, which contains an ARM7-TDMI processor running around 70-MHz. The current firmware version is "38 (4243)". A virus can overwrite this and stay resident in the system through complete wipes of the system, even wiping the primary BIOS.
The most insidious component is the "system agent" that may be powered on even when the computer is powered "off" as far as you can tell. This system agent is designed to be able to power on the computer when you press a key on the keyboard, when it receives a special packet from the network, or at certain configured times of the day.

While these devices seem diverse, there are in fact only a few manufacturers of microcontrollers and flash memory. Thus, once a hacker has written viral code for one, let's say the battery controller, it's not too difficult to extend the code to also infect the trackpad, for example.

The upshot is this: when a system gets infected by a virus, the infection can likely become permanent, being nearly impossible to completely remove from the system. There's just too many places code can hide, and too many components that can interfere with you trying to disinfect the system. Also, modern anti-virus vendors have nothing close to defending against this.

This sounds like science-fiction, but it really isn't. There have been prototypes floating around at hacker conferences for over 5 years. Personally I've played with a prototype infection of Ethernet firmware, others have played with infecting the motherboard BIOS. It's pretty straighforward for hackers.

Networking over hi-def audio

Dragos believes that two infected computers can communicate with each other over the audio port in frequencies above human hearing, thus allowing an "air gapped" computer to still communicate over the Internet.

This technique is no different than old telephone modems. Back in the early 1990s, modems contained dedicated hardware to modulate/demodulate the audio signal coming across the phone line. By the late 1990s, most modems became "soft modems" consisting of circuitry that simply sampled the audio signal like a sound card, and then used software running on the computer to do the modulation/demodulation.

Modern computers are thousands of times faster than that. Now we have "software defined radio" consisting of a dongle on the USB port that samples radio waves at a high frequency then processes those samples on the computer. With a $10 dongle, your laptop can pick up radio waves, such as television and radio broadcasts, or your neighbor's baby monitor. With a slightly more expensive dongle that can transmit as well as receive, your laptop can pretend to be a wifi access point or a cell phone tower -- doing all the signal processing on your main CPU in software.

Today's computers support "high definition" audio with 24 bit samples at 96 KHz sampling rate. I think it's been part of the PC spec now for over a decade, and even the cheapest of cheap RealTek audio chip support it. Hackers can apply the same soft-modem or soft-radio concepts to it for communications. They can apply a bandpass filter to the lower 20 KHz that is in human hearing range, and use the remaining bandwidth ("ultrasonic frequencies") for communications. Even if hackers aren't personally familiar with signal processing, they can download open-source code to do it for them. This the sort of thing a professor in a college course might assign to students as homework. Sure, it's a little tricky, because speakers distort the sound, and you have to deal with echoes in the room as sound bounces off walls, but that can be solved either by lowering transmission rate or more advanced signal processing.

In other words, while I know of no talk at a hacking conference on "air gapped communication" via sound waves, it's pretty darn easy, so expect to see one soon at a conference.

By the way, there are other ways to do air gapped communications using covert channels. For example, you might exploit blinking LEDs and using the built-in camera on the laptop. Or, you might be able to monitor the voltage on the power supply on one computer while turn on the power supply on/off on another. The overage laptop computer has a godaweful number of inputs/outputs that we don't quite realize.

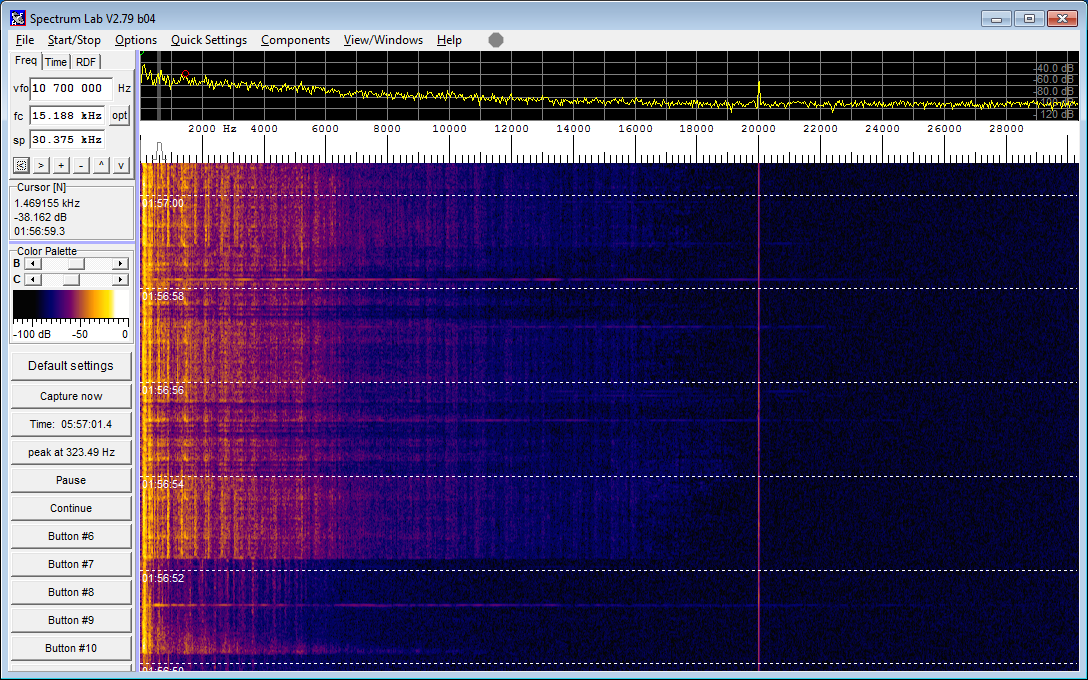

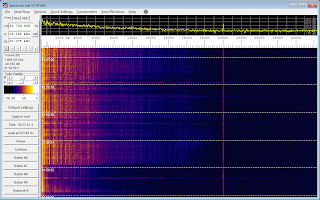

[Update:] The picture above is that of a $229 netbook computer producing a 20 KHz tone that's received by $2000 MacBook Air, while music is playing in the background. That the carrier is clearly visible hints that this is a practical technique for low-speed communications. While testing today, I couldn't get anything above 24 KHz to work, because speakers are surprisingly bad, and manufacturers lie about how fast they sample input.

Infection via USB

Dragos reports that unplugging a USB stick from an infected machine and then plugging it into an uninfected machine will transfer the virus. This relies upon two important features of USB: the first is that USB devices contain their own microprocessor/firmware (of course), and the second that drivers are buggy.

There are only a few popular vendors of USB thumbdrive controllers. There is a great website "http://flashboot.ru" that documents all them. I've visited their site many times in order to download software for my flash drives. I use this software to reprogram them to emulate a CD-ROM drive, making "read-only flash drives", but you can also use this software to download new firmware to the flash drives. Thus, it's pretty straightforward for hostile malware to not simply overwrite the data on inserted USB drives, but to overwrite their firmwares as well.

Once USB drive has hostile firmware, it can now attack new machines when it's plugged in. The reason is that software in Windows/Linux/Mac that talks to USB devices is inherently insecure. They assume that all USB devices are friendly rather than hostile, and believe whatever these devices tell them. This allows hostile devices to exploit vulnerabilities in driver code.

For example, USB drivers are full of "buffer overflow" bugs. Let's say that you have a buffer that's supposed to be less than 16 bytes according to the specification, but a hostile USB device gives you 100 bytes instead. Driver writers don't check that sort of thing, thus allowing a hostile USB device to take control of the host system.

Making this work well with viruses is tough job for hackers. Their code will have to fingerprint the system, such as the BIOS vendor when infecting during the boot process, or fingerprint the operating system when the USB drive is inserted later. But, at the same time, it's just a matter of effort, adding new USB controllers to your malware, or adding new operating system targets.

Covert network channels

Dragos reports seeing odd IPV6 packets even when the system doesn't support IPv6. Actually, there is a lot whole lot of ways that a computer may talk covertly across the network.

There are a lot of high-level components that malware can hook into such that you'd never see the network communication by looking at the network. For example, I could insert myself into a Chrome browser such that whenever you sent an email from your browser via Gmail, it'd send an extra message from my malware, then erase the message from the sent folder. All you'd see on the wire is that some of the SSL packets are slightly bigger than expected. But, what you wouldn't see is any network communication happening when the computer isn't connected to Gmail.

Another example is the DCOM debugging feature. DCOM is Microsoft's way of building corporate app that distribute themselves across computers. It's got a cool way that I can add a DLL to a program that hitches a ride along with all DCOM packets. Thus, while sniffing the network, even unencrypted packets in the clear, you are likely to still miss this additional information in each packet.

Or take DNS, which we've long used as a method for cover communications. Just wait for a flurry of DNS packets (like 10 DNS in 10 seconds), then add your own DNS packet.

The point I'm trying to make here is that hackers can easily hide covert communications within packets that would be really hard to detect by capturing all packets going across the wire.

Conclusion

Everything Dragos describes is plausible. It's not the mainstream of "hacking", but neither is it "nation state" level hacking. That it's all so plausible leads credence to the idea that Dragos isn't imagining it. Of course, since Dragos is an expert, his imagination is likely be full of factually correct details anyway, so maybe the plausibility of these hacks isn't such guarantee of truth.

Dragos has only been analyzing this for a few weeks. Presumably, he won't give us the full details for us to check out until the next CanSecWest conference. Until then, I guess we are all just blowing smoke about whether this is "real" or not.
